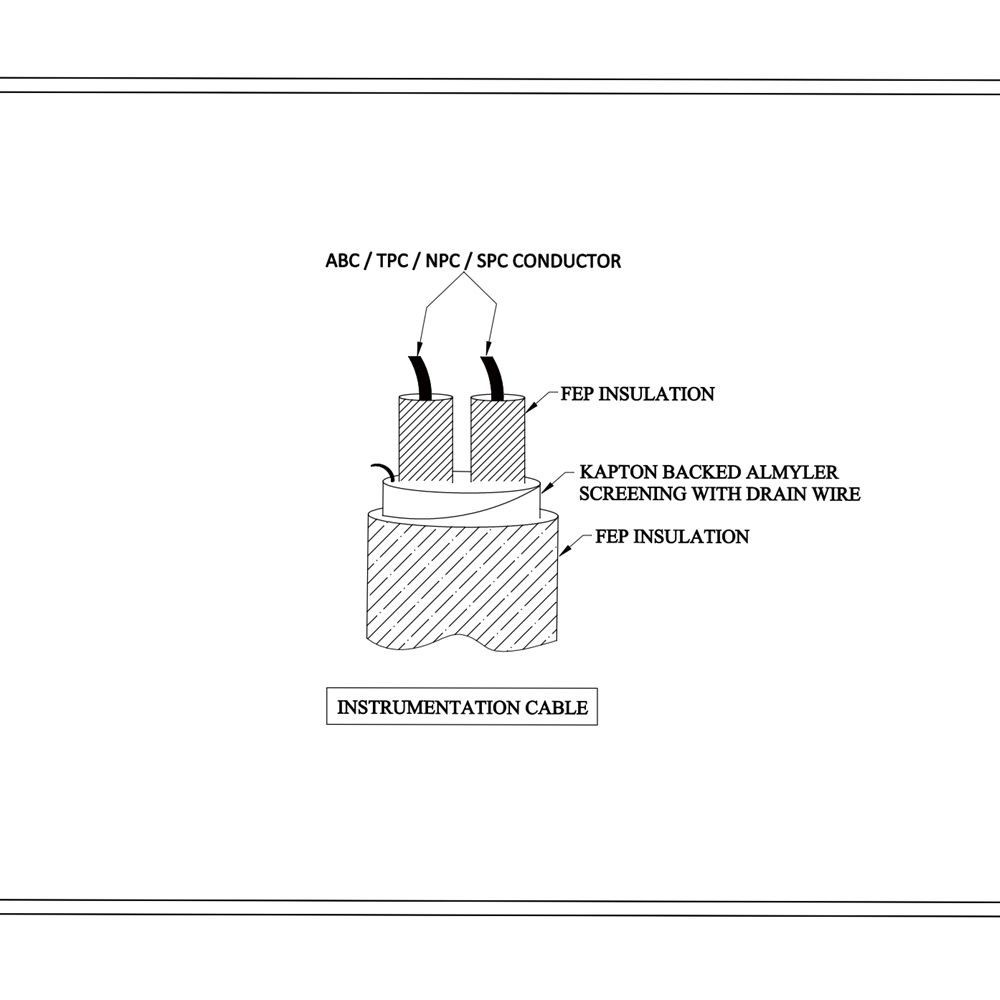

FEP-Al-MYLER SCREENING-FEP

Technical Details

Design Standard : As per JSS 51034, IS 8130

Conductor : Annealed Bare Copper / Nickel Plated Copper /

Tinned Plated Copper / Silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Extruded FEP Insulated

Core Formation : Twisted

Screening : Kapton Backed Al-Myler Screening

With ( 0.50 Sqmm ) ATC Drain Wire

Outer Sheath Insulation : Extruded FEP Insulated

Core Colour : As per Customer specification.

Outer Sheath Colour : As per Customer specification.

Cable Temp. Range : Up to 200 Deg C

Voltage Grade : Upto 1100 V
