FEP – SILICON RUBBER
Technical Details
Design Standard : As per JSS 51034, IS 8130
Conductor : Annealed Bare Copper / Nickel Plated Copper / Tinned Plated Copper / Silver Plated Copper
Conductor Size : Variant as per customer specifications
Conductor Type : Solid wire / Flexible
No of Core : Single Core / Multi Core
Core Insulation : Extruded FEP Insulated
Core Formation : Twisted / Flat
Outer Sheath Insulation : Silicon Rubber Insulation
Core Colour : As per Customer specification.
Outer Sheath Colour : As per Customer specification.
Cable Temp. Range : Up to 200 Deg C
Voltage Grade : Upto 1100 V
Special Features
Max. Temp. upto 200ºC
Excellent Heat Resistant
Outstanding Insulating Properties
Good Thermal Stability
Flame Retardant
Passes JSS 51034 Flame Test

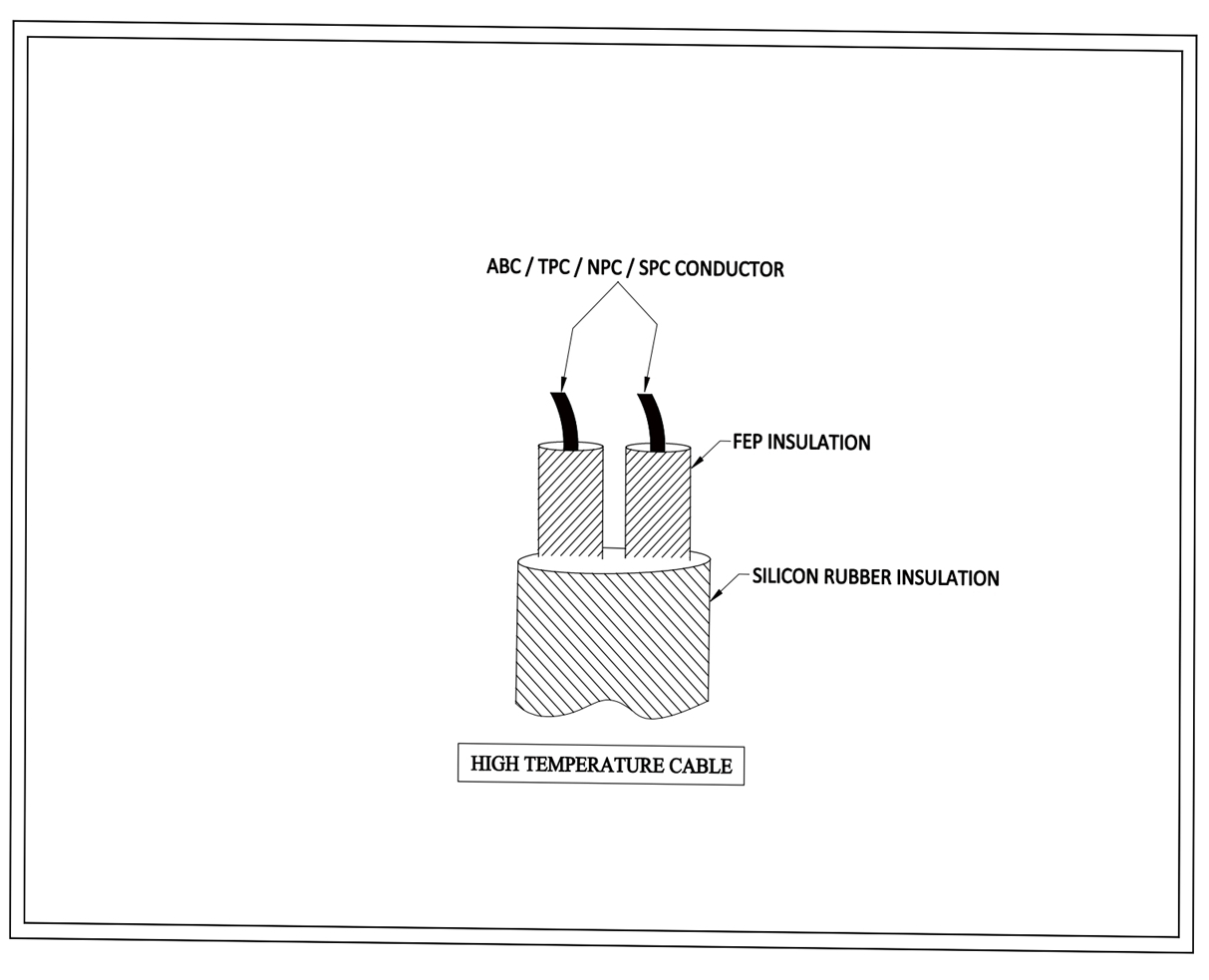

Technical ( GA ) Drawing
