FG-ALMYLER-VFG
Technical Details
Design Standard : As per JSS 51037; IS 8130:84
Conductor-1 : “S”/”B” Type Compensating Grade Conductor
Conductor-2 : Annealed Bare Copper Grade Conductor
Conductor Size : As per Customer Requirement
Conductor Type : Solid wire / Stranded
No of Pair : 2 Pair
Core Insulation : Fiber Glass Braiding
Core Formation : Twisted
Schielding : Kapton Backed Al-myler Shielding with ( 0.50 sqmm )
ATC Drain Wire
Overall Braiding : Fiber Glass Insulation With High Temp. Varnish
Core Colour : As per Standard
Outer Sheath Colour : As per Standard
Colour Code : As per Standard.
Cable Temp. Range : Up to 450 Deg C
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 450ºC
- Excellent Physical Properties
- Excellent Di-Electric constant
- Excellent Flame Retardant Property
- Good Heat Resistivity
- High Thermal Endurance
- Good Moisture, Chemical Abrasion Resistance
- Excellent Resist to Electro Magnetic Inter Ference

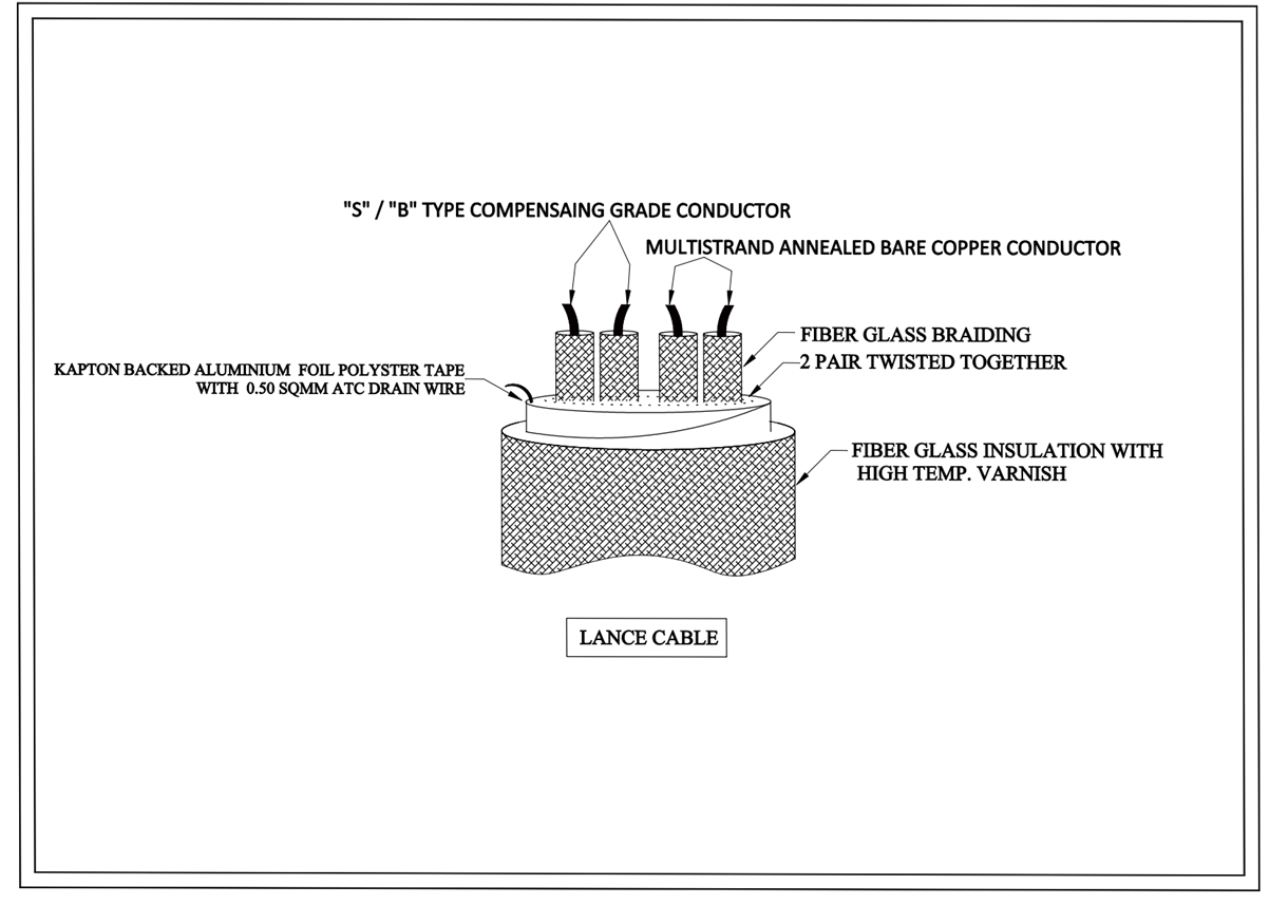

Technical ( GA ) Drawing
