HDPE-PP-SCREEENING-PVC
Technical Details
Design Standard : As per IS 584.3 ; IS 8130:84
Conductor : Annealed Bare Copper Conductor
Conductor Size : AWG 22
Conductor Type : Solid wire
No of Pair : Single Pair
Core Insulation : HDPE Insulation
Core Formation : Twisted
Schielding : Aluminium Foil With Polyster Tape along with ( 0.50 Sqmm ) ATC
Drain Wire
Outer Sheath Insulation : Extruded PVC / FR PVC / FRLS PVC
Core Colour : As per Standard
Outer Sheath Colour : As per Standard
Colour Code : As per Standard.
Cable Temp. Range : Up to 105 Deg C
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 105ºC
- Excellent Physical Properties
- Excellent Di-Electric constant
- Excellent Flame Retardant Property
- Good Heat Resistivity
- High Thermal Endurance
- Good Moisture, Chemical Abrasion Resistance
- Excellent Resist to Electro Magnetic Inter Ference

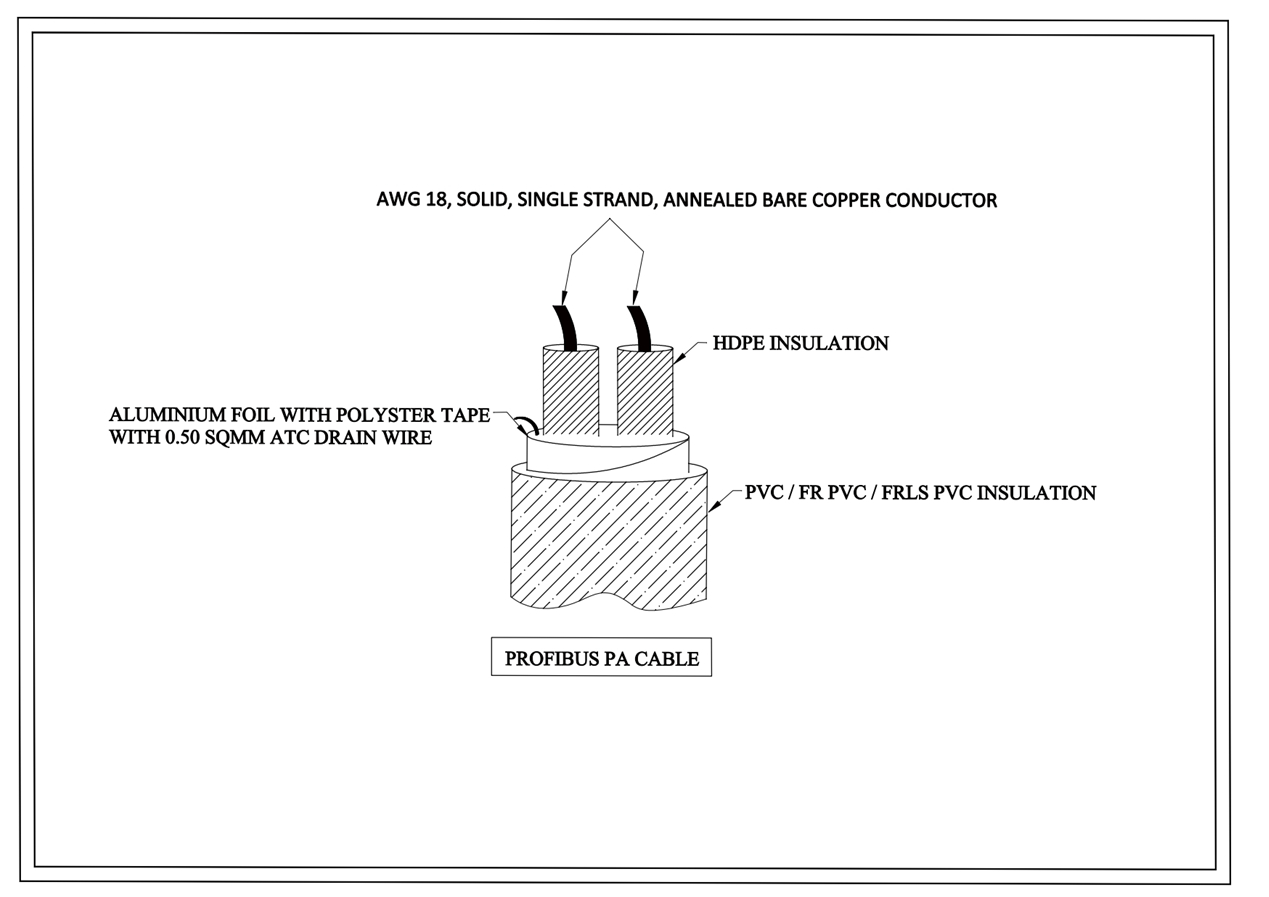

Technical ( GA ) Drawing
