PE-FOIL-AL ALLOY BRAIDING-PVC
Technical Details
- Design Standard : As per IS 8130, IS 694 ; IS 5831:84
- Conductor : Annealed Bare Copper Conductor
- Conductor Size : Variant as per customer specifications
- Conductor Type : Solid wire / Flexible
- No of Core : Single Core
- Core Insulation : Extruded Solid PE Insulation
- Binder : Aluminum Foil Tapping
- Braiding : Aluminum Alloy Braiding
- Outer Sheath Insulation : PVC / FR PVC / FRLS PVC Insulation
- Core Colour : As per Customer specification.
- Outer Sheath Colour : As per Customer specification.
- Cable Temp. Range : Up to Up to 105 Deg.C.
- Voltage Grade : Up to 1100 V
Special Features
- Max. Temp. upto 260oC
- Excellent Physical Properties
- Excellent Di-Electric constant
- Excellent Flame Retardant Property
- Good Heat Resistivity
- High Thermal Endurance
- Good Moisture, Chemical Abrasion Resistance

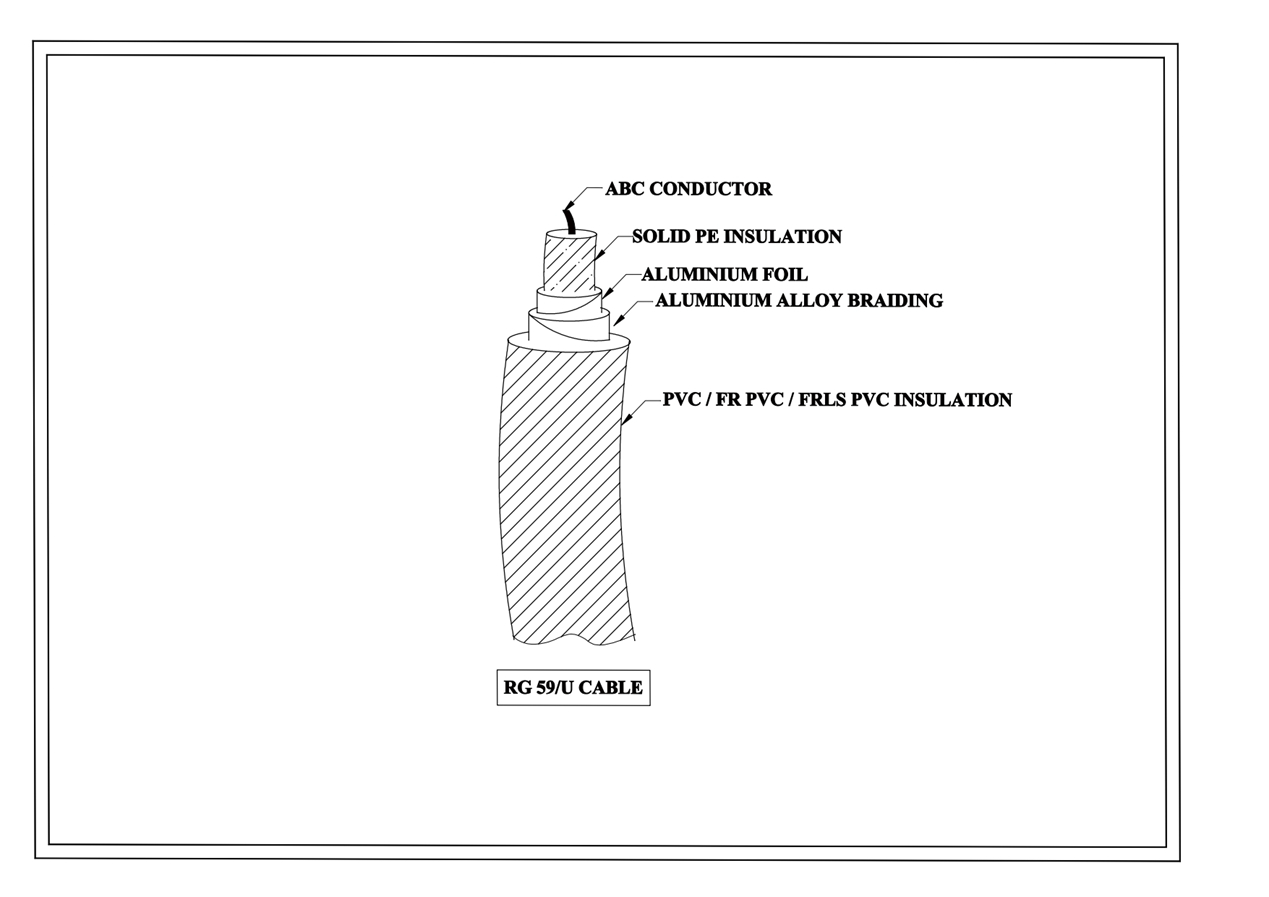

Technical ( GA ) Drawing
