PE-FOIL-AL ALLOY BRAIDING-PVC
Technical Details
Design Standard : As per IS 8130, IS 694 ; IS 5831:84
Conductor : Annealed Bare Copper Conductor
Conductor Size : Variant as per customer specifications
Conductor Type : Solid wire / Flexible
No of Core : Single Core
Core Insulation : Extruded Solid PE Insulation
Binder : Aluminium Foil Tapping
Braiding : Aluminium Alloy Braiding
Outer Shaeth Insulation : PVC / FR PVC / FRLS PVC Insulation
Core Colour : As per Customer specification.
Outer Sheath Colour : As per Customer specification.
Cable Temp. Range : Up to Upto 105 Deg.C.
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 260ºC
- Excellent Physical Properties
- Excellent Di-Electric constant
- Excellent Flame Retardant Property
- Good Heat Resistivity
- High Thermal Endurance
- Good Moisture, Chemical Abrasion Resistance

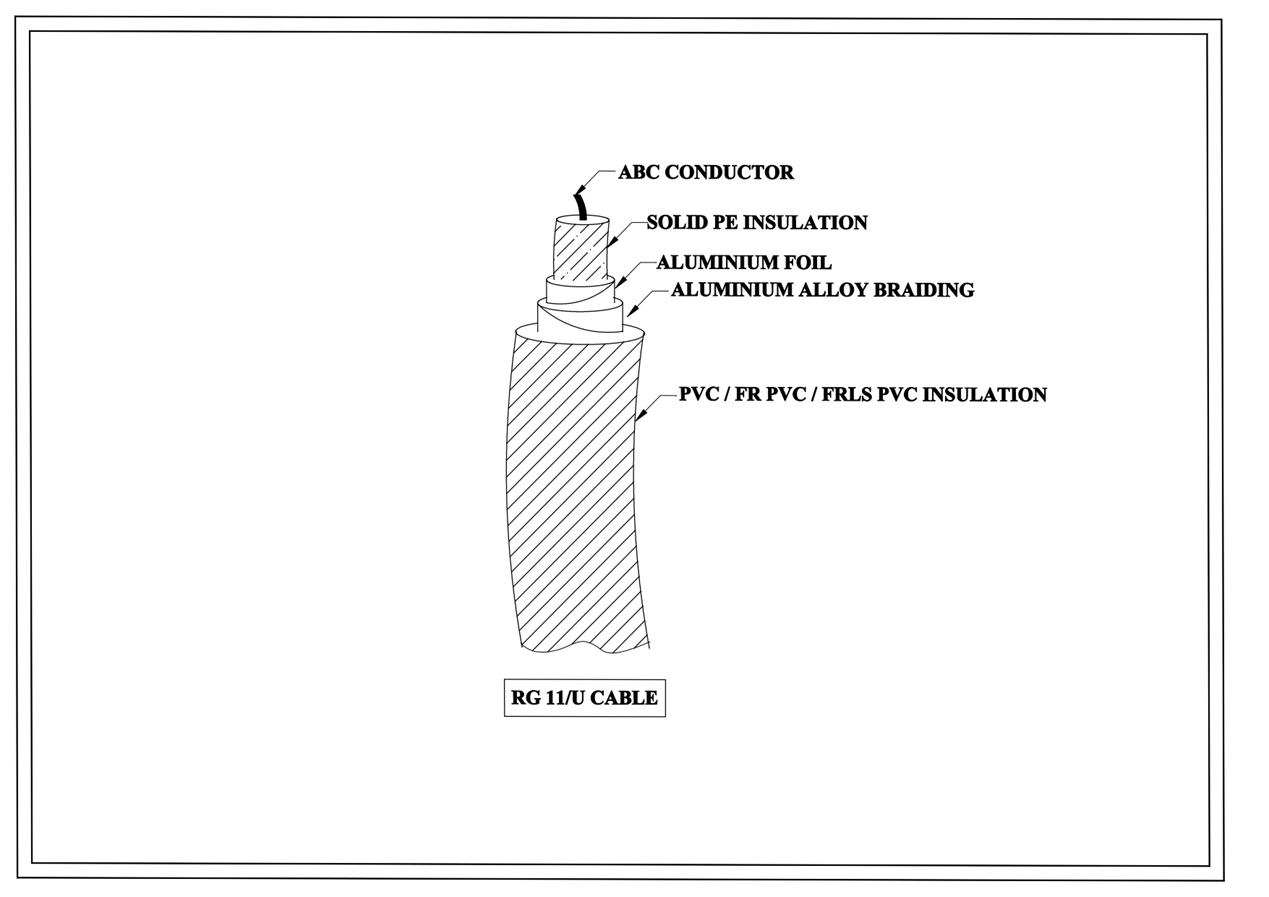

Technical ( GA ) Drawing
