PFA-PFA

Technical Details

Design Standard : As per JSS 51034, IS 8130

Conductor : Annealed Bare Copper / Nickel Plated Copper / Silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Extruded PFA Insulated

Core Formation : Twisted / Flat

Outer Sheath Insulation : Extruded PFA Insulated

Core Colour : As per Customer specification.

Outer Sheath Colour : As per Customer specification.

Cable Temp. Range : Up to 260 Deg C

Voltage Grade : Upto 1100 V

Special Features

• Max. Temp. upto 260ºC
• Suitable for High Voltage Use
• Low Dielectric Constant
• Excellent Fire Retardant Property
• Good Mechanical Strength
• Good Moisture, Chemical Abrasion Resistance

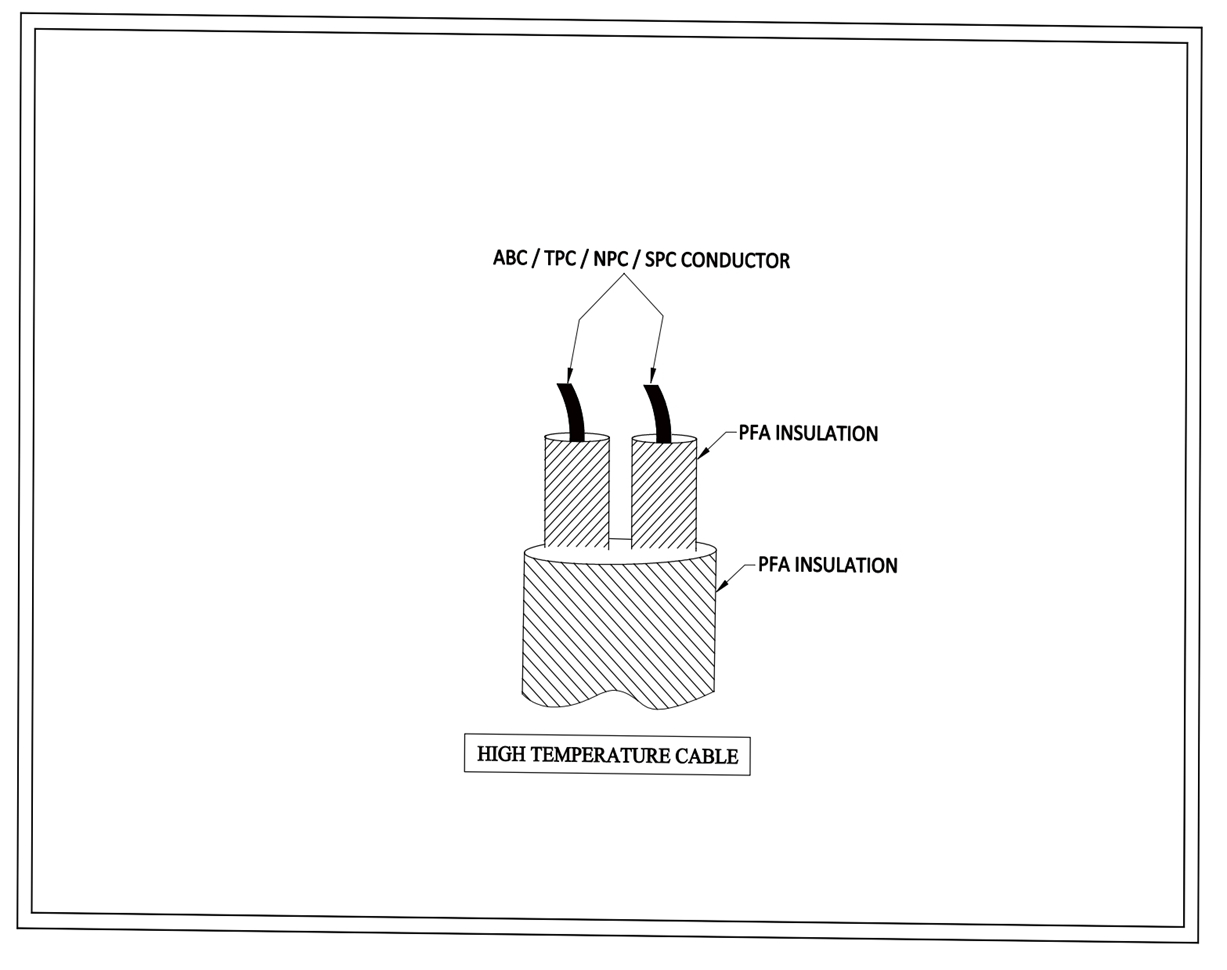

Technical ( GA ) Drawing
