PTFE-ALMYLER-PTFE
Technical Details
Technical Detail
Design Standard : As per JSS 51034, IS 8130
Conductor : Annealed Bare Copper
Conductor Size : AWG 23
Conductor Type : Solid wire
No of Pair : 4 Pair
Core Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation
Core Formation : Twisted
Schielding : Kapton Backed Aluminium Schielding with ( 0.50 Sqmm ) ATC
Drain Wire
Outer Sheath Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation
Core Colour : As per Standard
Outer Sheath Colour : As per Standard
Cable Temp. Range : Up to 260 Deg C
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 260ºC
- Excellent Heat Resistant
- Outstanding Insulating Properties
- Good Thermal Stability
- Flame Retardant
- Excellent Mechanical Strength
- Passes JSS 51034 Flame Test

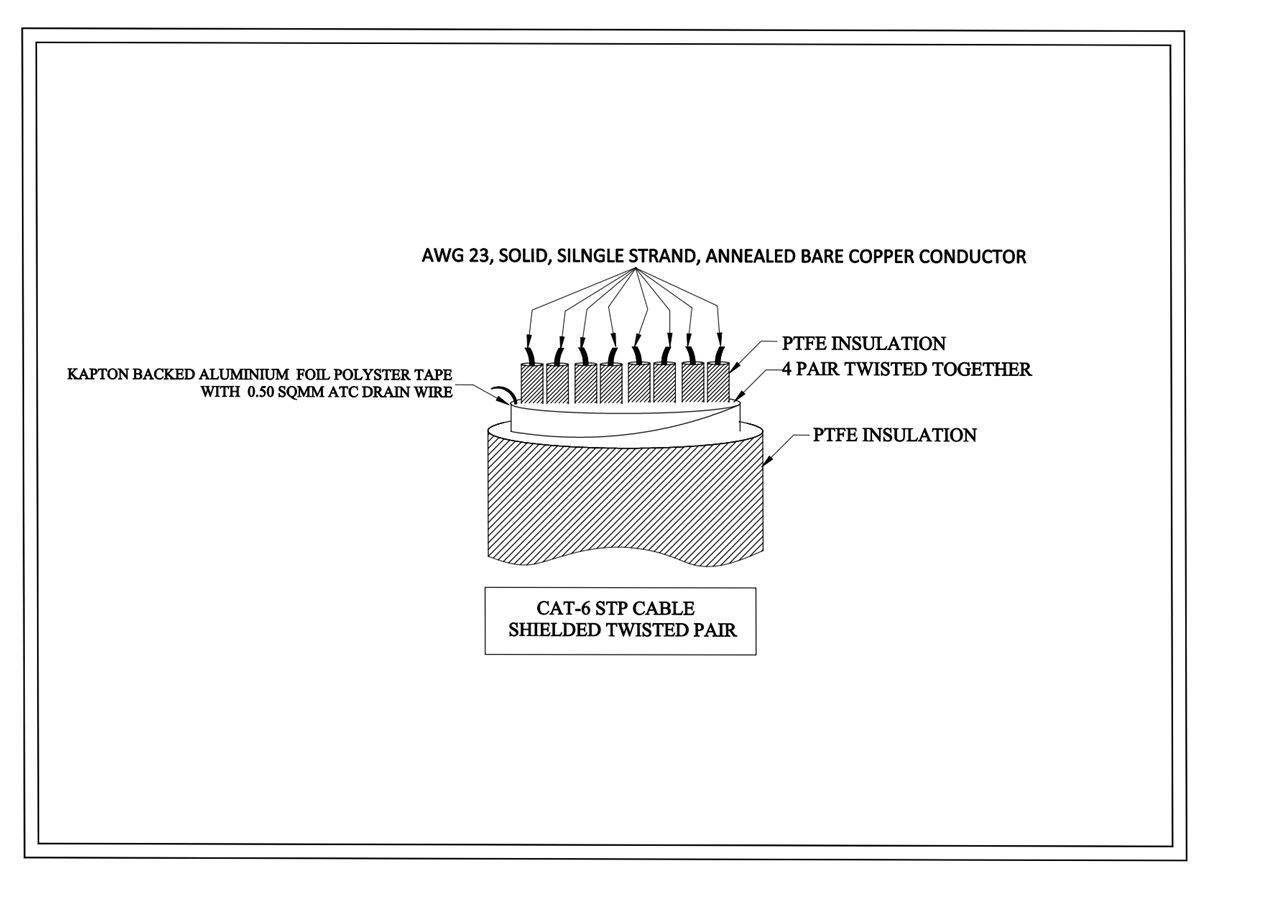

Technical ( GA ) Drawing
