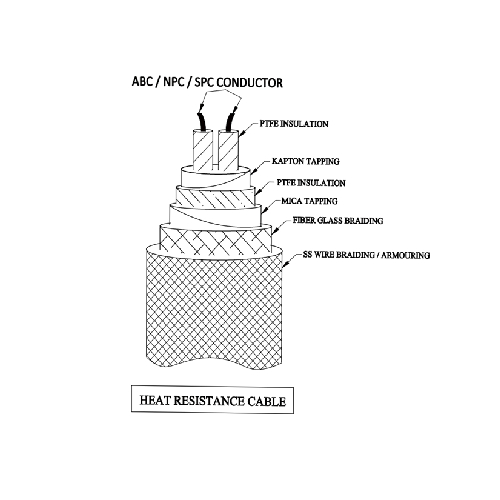

PTFE-KAPTON-PTFE-MICA-FG-SS BRAIDING
Technical Details
- Design Standard : As per JSS 51034, IS 8130
- Conductor : Annealed Bare Copper/ Nickel Plated Copper / Silver Plated Copper
- Conductor Size : Variant as per customer specifications
- Conductor Type : Solid wire / Flexible
- No of Core : Single Core / Multi Core
- Core Insulation: Wrapped & Sintered PTFE ( Teflon ) Insulation
- Core Formation : Twisted
- Overall isolator: Kapton Tapping
- Inner Sheath Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation
- High Temp.Tapping : Mica Tapping
- Overall Braiding : Fiber Glass Braiding
- Overall Armouring : Stainless Steel Wire Braided/Armouring
- Core Colour : As per Customer specification.
- Outer Sheath Colour : As per Customer specification.
- Cable Temp. Range : Up to 600 Deg C
- Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 600ºC
- Excellent Heat Resistant
- Outstanding Insulating Properties
- Good Thermal Stability
- Flame Retardant
- Good Abrasion Resistance
- Good Dielectric Strength
- Excellent Mechanical Strength
- Passes JSS 51034 Flame Test

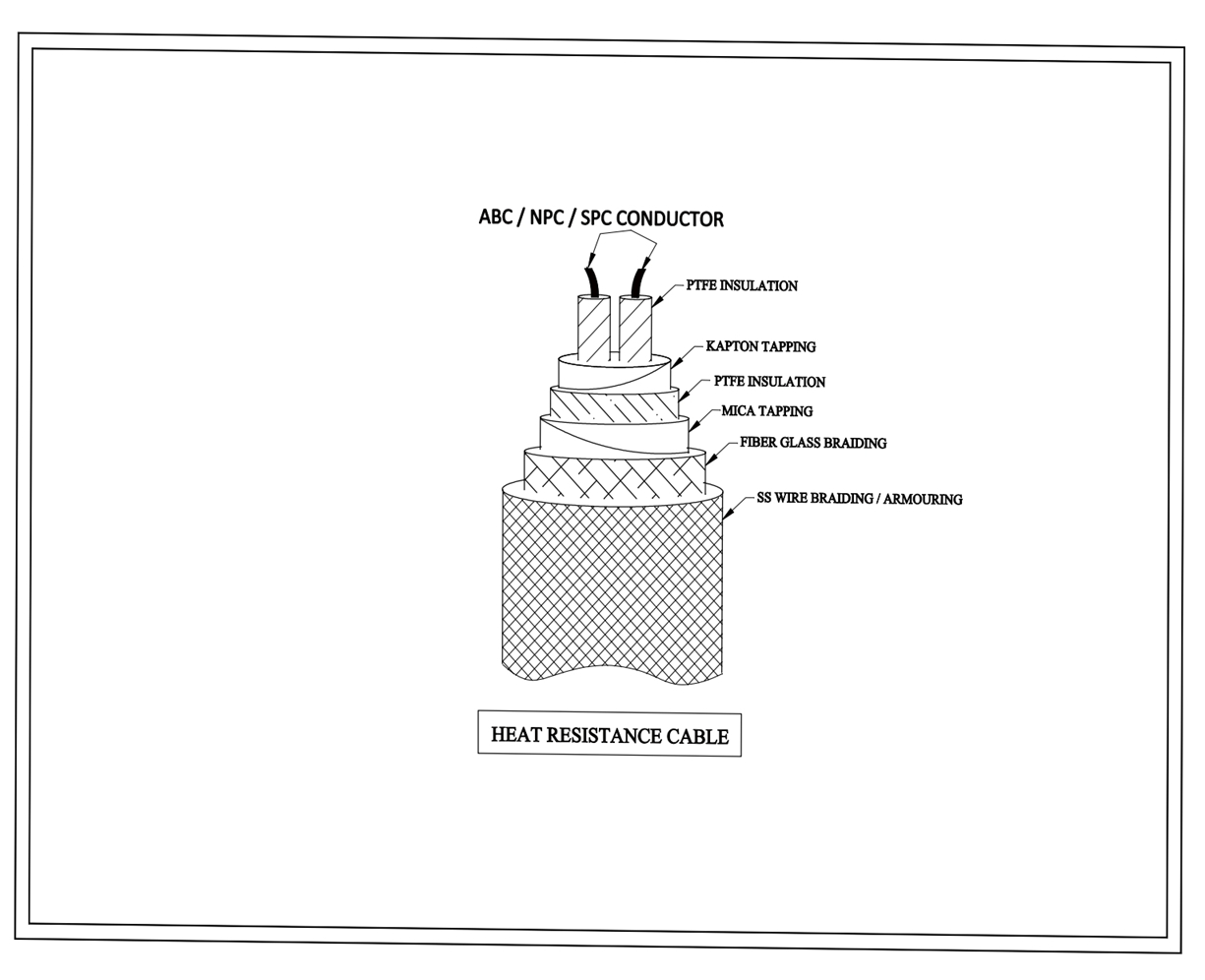

Technical ( GA ) Drawing
