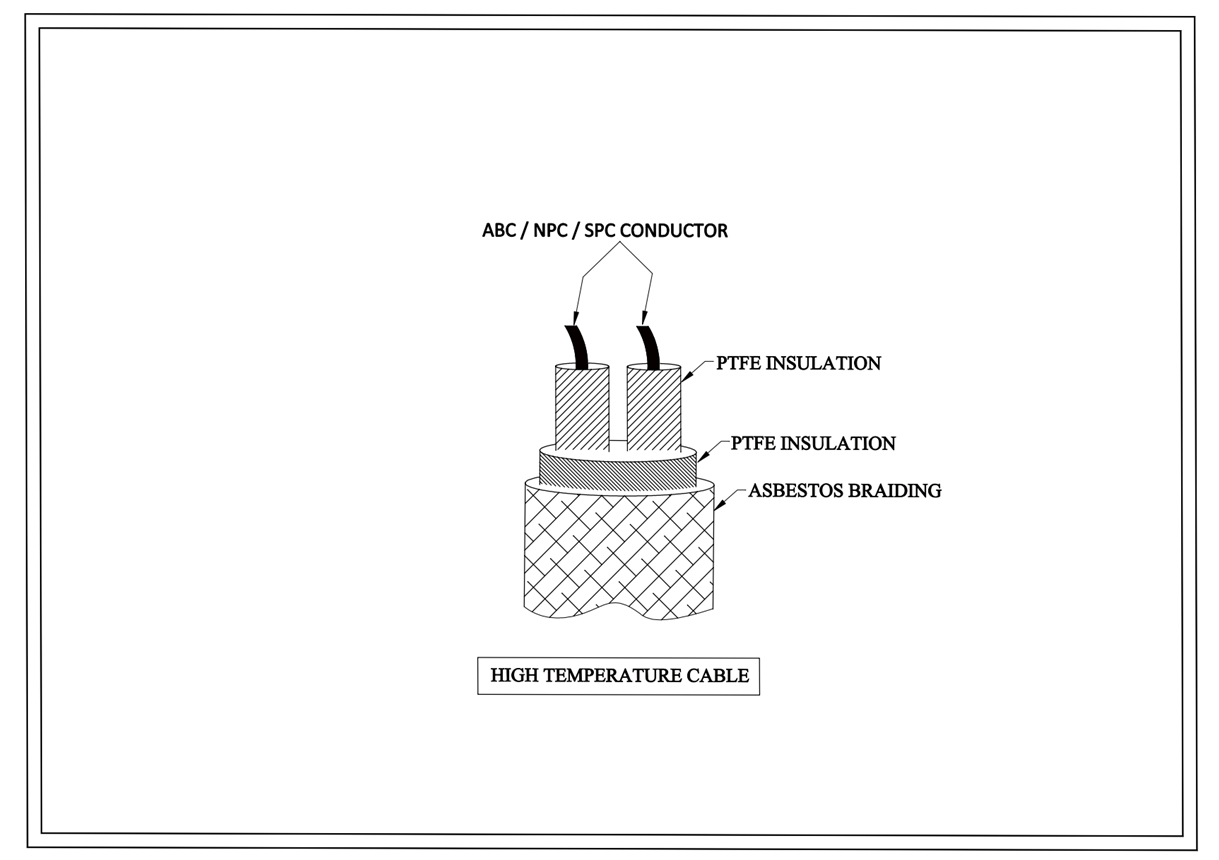

PTFE-PTFE-ASBESTOS BRAIDING

Technical Details

Design Standard : As per DIN 43760, JSS 51034, IS 8130

Conductor : Annealed Bare Copper / Nickel Plated Copper /
silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation

Core Formation : Twisted / Flat

Inner Sheath Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation

Overall Braiding : Asbestos Braiding

Core Colour : As per Customer specification.

Outer Sheath Colour : As per Customer specification.

Colour Code : As per Customer specification.

Cable Temp. Range : Up to 400 Deg C

Voltage Grade : Upto 1100 V
