PTFE-PTFE-ASBESTOS BRAIDING
Technical Details
- Design Standard : As per DIN 43760, JSS 51034, IS 8130
- Conductor : Annealed Bare Copper /Tinned Plated Copper / Nickel Plated Copper / Silver Plated Copper
- Conductor Size : Variant as per customer specifications
- Conductor Type : Solid wire / Flexible
- No of Core : Single Core / Multi Core
- Core Insulation : : Wrapped & Sintered PTFE ( Teflon ) Insulation
- Core Formation : Twisted/Flat
- Inner Sheath Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation
- Overall Braiding : Asbestos Braiding
- Core Colour : As per Customer specification.
- Outer Sheath Colour : As per Customer specification.
- Colour Code: As per Customer specification.
- Cable Temp. Range : Up to 400 Deg C
- Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 400ºC
- Excellent Heat Resistant
- Outstanding Insulating Properties
- Good Thermal Stability
- Good Abrasion Resistance
- Flame Retardant
- Good Moisture Resistance
- Good Dielectric Strength
- Passes JSS 51034 Flame Test

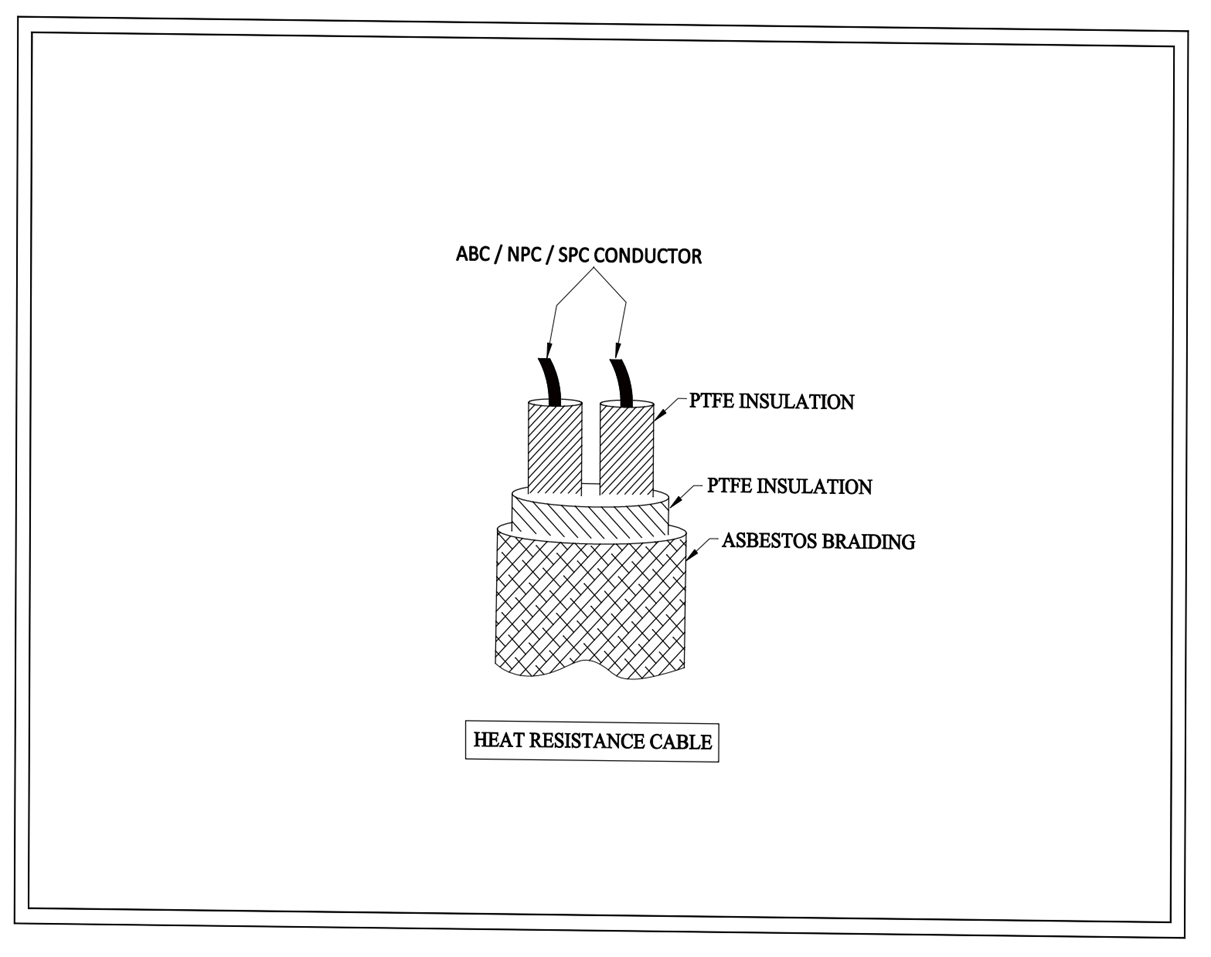

Technical ( GA ) Drawing
