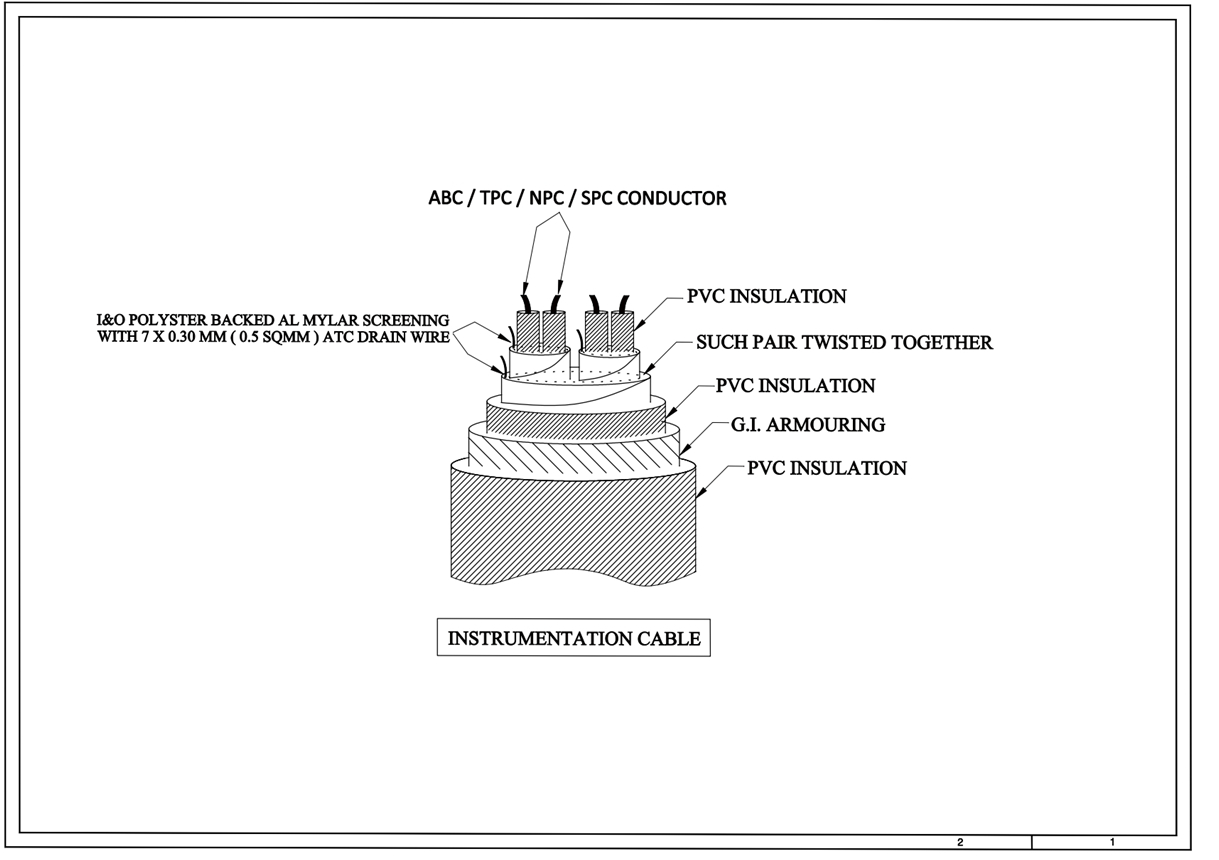

PVC-I&O Al-MYLER SCREENING-PVC-GI ARM-PVC

Technical Details

Design Standard : As per IS 8130, IS 5831:84, IS 694, IS 1554, IS 3975, IS 7098, BS 5308

Conductor : Annealed Bare Copper / Nickel Plated Copper / Tinned Plated Copper / Silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Extruded PVC / HR PVC / FR PVC / FRLS PVC / PE / XLPE / LSZH PVC etc

Core Formation : Twisted

Screening : Individual & Overall Polyster Backed Al-Myler Screening With ( 0.50 Sqmm ) ATC Drain Wire

Inner Sheath Insulation : Extruded PVC / HR PVC / FR PVC / FRLS PVC / PE / XLPE / LSZH PVC etc

Armouring : Galvanized Iron Wire, Round / Flat Strip Armouring

Outer Sheath Insulation : Extruded PVC / HR PVC / FR PVC / FRLS PVC / PE / XLPE / LSZH PVC etc

Core Colour : As per Customer specification.

Inner Sheath Colour : Black

Outer Sheath Colour : As per Customer specification.

Cable Temp. Range : Up to 105 Deg C
