SILICON RUBBER-FG-COPPER BRAIDING
Technical Details
- Design Standard : As per ANSI MC 96.1, IEC 60584.3, ASTM E230
- Conductor : KCA/KCB/KX/EX/NX/TX/JX/SC/RC
- Conductor Size : Variant as per customer specifications
- Conductor Type : Solid wire / Flexible
- No of Pair : Single Pair / Multi Pair
- Core Insulation : Silicon Rubber Insulation
- Core Formation : Twisted
- Inner sheath braiding : Fiber Glass Braiding
- Overall Braiding : Copper Wire Braiding
- Core Colour : As per Customer specification.
- Outer Sheath Colour : As per Customer specification.
- Colour Code : As per Customer specification.
- Cable Temp. Range : Up to 300 Deg C
- Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 300ºC
- Excellent Heat Resistant
- Outstanding Insulating Properties
- Good Thermal Stability
- Excellent Resistance to Ozone & Corona Effect
- Easier Solder Termination
- Good Moisture, Chemical Abrasion Resistance

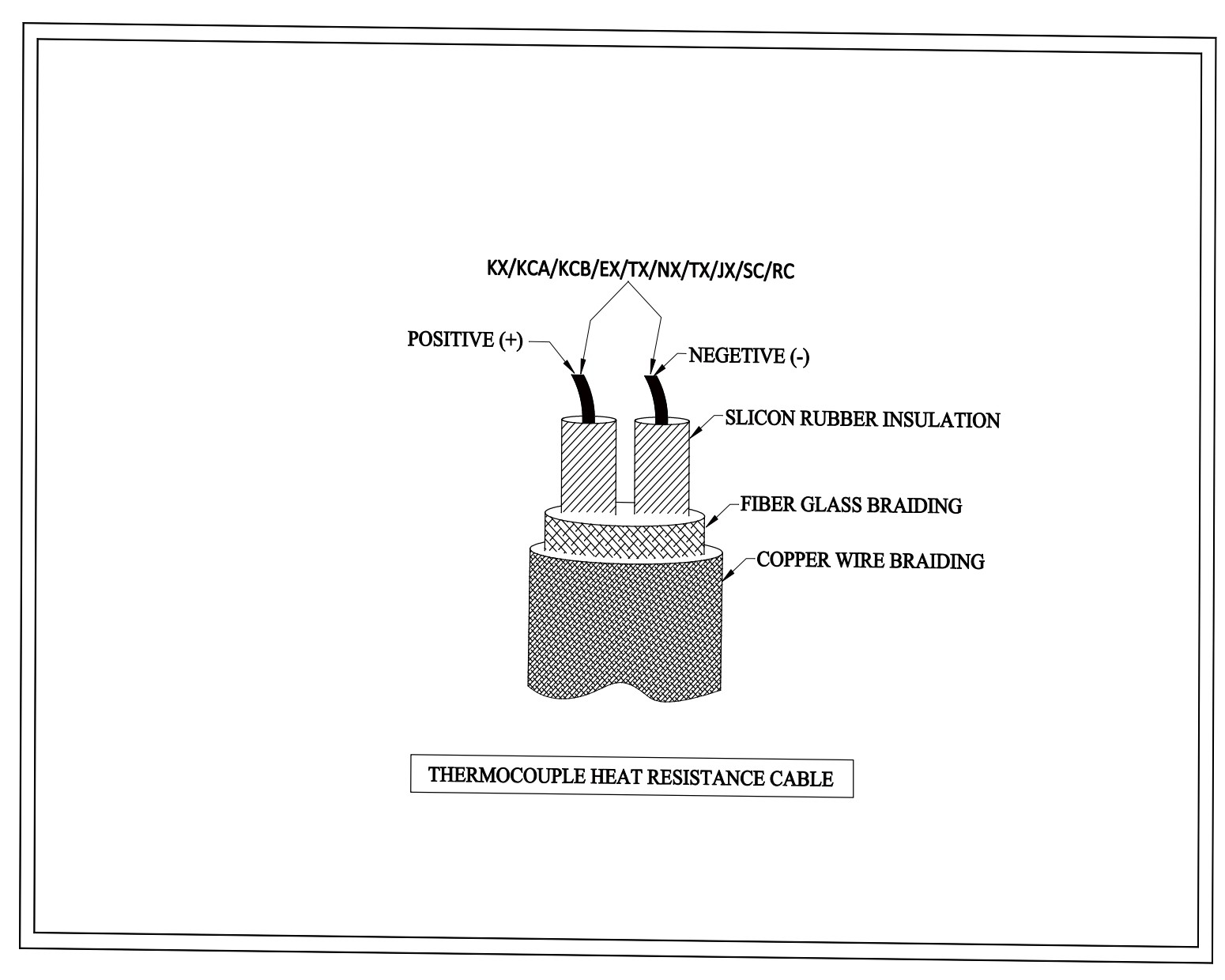

Technical ( GA ) Drawing
