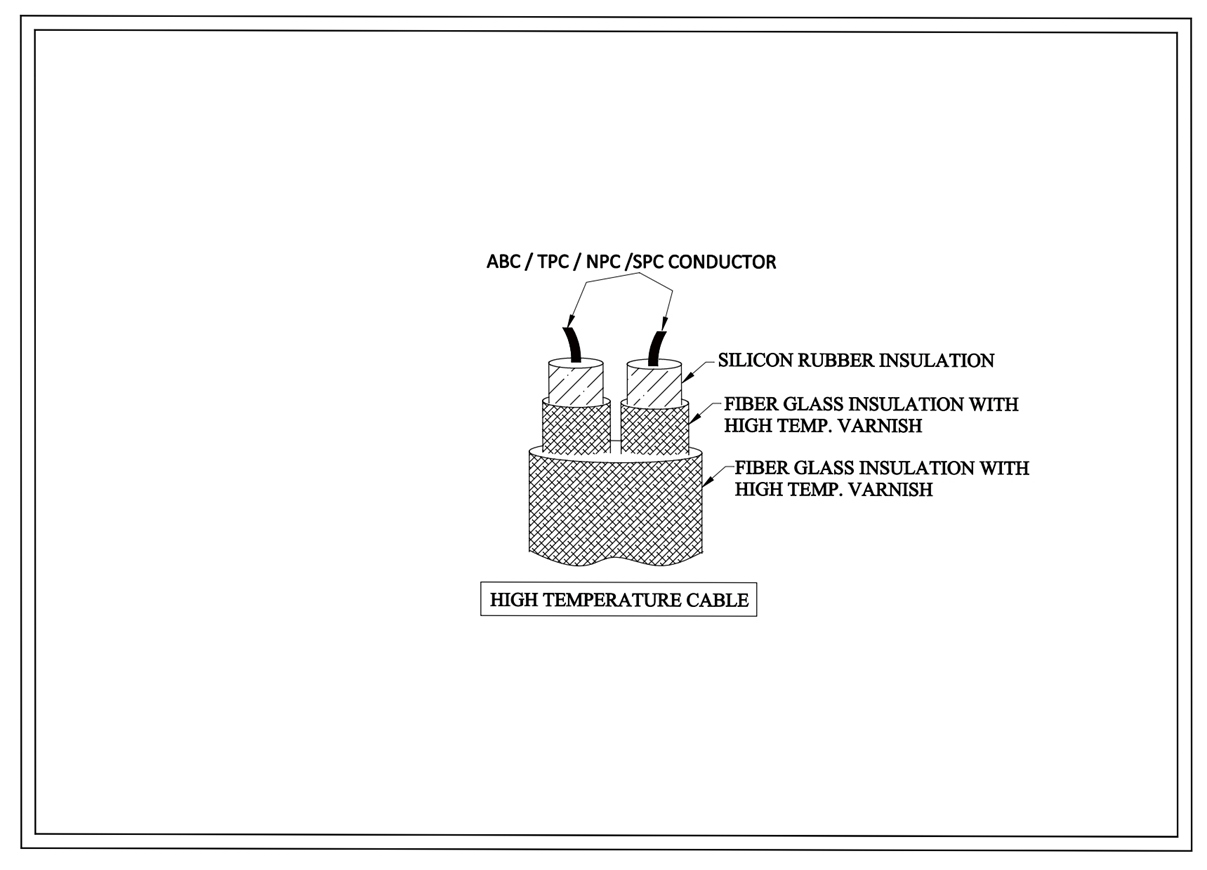

SILICON-VFG-VFG

Technical Details

Design Standard : As per IS 9968, IS 8130
Conductor : Annealed Bare Copper /Tinned Plated Copper / Nickel Plated Copper / Silver Plated Copper
Conductor Size : Variant as per customer specifications
Conductor Type : Solid wire / Flexible
No of Core : Single Core / Multi Core
Core Insulation(A) : Single Rubber Insulation
Core Insulation(B) : Fiber Glass Insulation With High Temp.Varnish
Core Formation : Twisted
Outer Sheath Insulation : Glass Insulation With High Temp.Varnish
Core Colour : As per Customer specification.
Outer Sheath Colour : As per Customer specification.
Cable Temp. Range : Up to 400 Deg C
Voltage Grade : Upto 1100 V
