VFG-VFG Upto 550 Deg C
Technical Details
- Design Standard : As per JSS 51037, IS 8130
- Conductor : Annealed Bare Copper / Tinned Plated Copper / Nickel Plated Copper / Silver Plated Copper
- Conductor Size : Variant as per customer specifications
- Conductor Type : Solid wire / Flexible
- No of Core : Single Core / Multi Core
- Core Insulation(A) : Fiber Glass Insulation With High Temp. Varnish
- Core Formation : Twisted/Flat
- Outer Sheath Insulation : Fiber Glass Braiding With High Temp.Varnish
- Core Colour : As per Customer specification.
- Outer Sheath Colour : As per Customer specification.
- Cable Temp. Range : Up to 550 Deg C
- Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 550ºC
- Excellent Physical Properties
- Excellent Di-Electric Constant
- High Thermal Endurance
- Excellent Heat Resistant
- Good Thermal Stability
- Flame Retardant
- Good Moisture, Chemical Abrasion Resistance

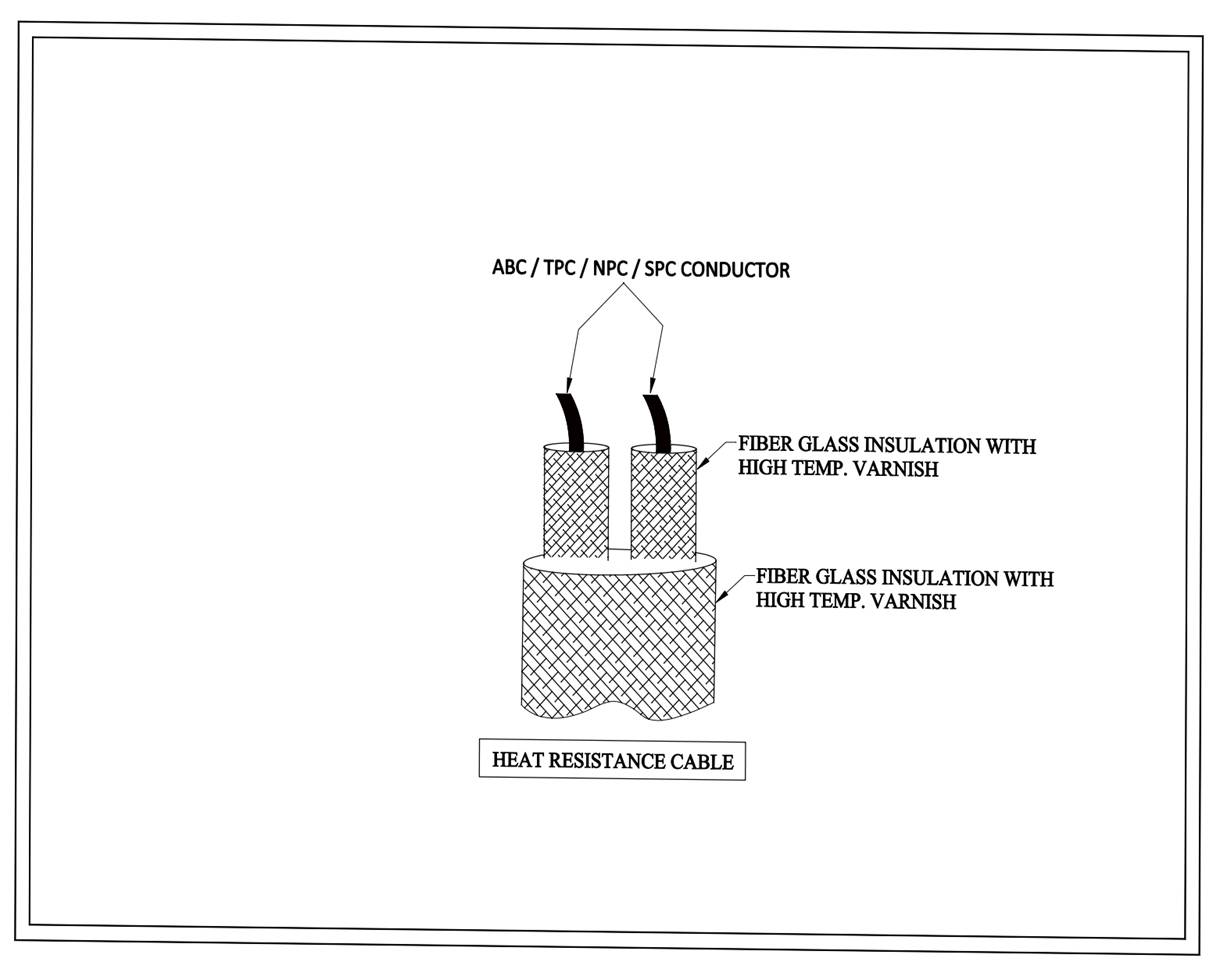

Technical ( GA ) Drawing
