FEP-FEP-S.S. BRAIDING
Technical Details
Design Standard : As per JSS 51034, IS 8130
Conductor : Annealed Bare Copper / Nickel Plated Copper /Tinned Plated Copper / Silver Plated Copper
Conductor Size : Variant as per customer specifications
Conductor Type : Solid wire / Flexible
No of Core : Single Core / Multi Core
Core Insulation : Extruded FEP Insulated
Core Formation : Twisted
Inner Sheath Insulation : Extruded FEP Insulated
Overall Armouring : Stainless Steel Wire Braiding / Armouring
Core Colour : As per Customer specification.
Outer Sheath Colour : As per Customer specification.
Cable Temp. Range : Up to 200 Deg C
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 200ºC
- Suitable for High Voltage Use
- Low Dielectric Constant
- Excellent Fire Retardant Property
- Good Mechanical Strength
- Good Moisture, Chemical Abrasion Resistance
- Excellent Mechanical Strength

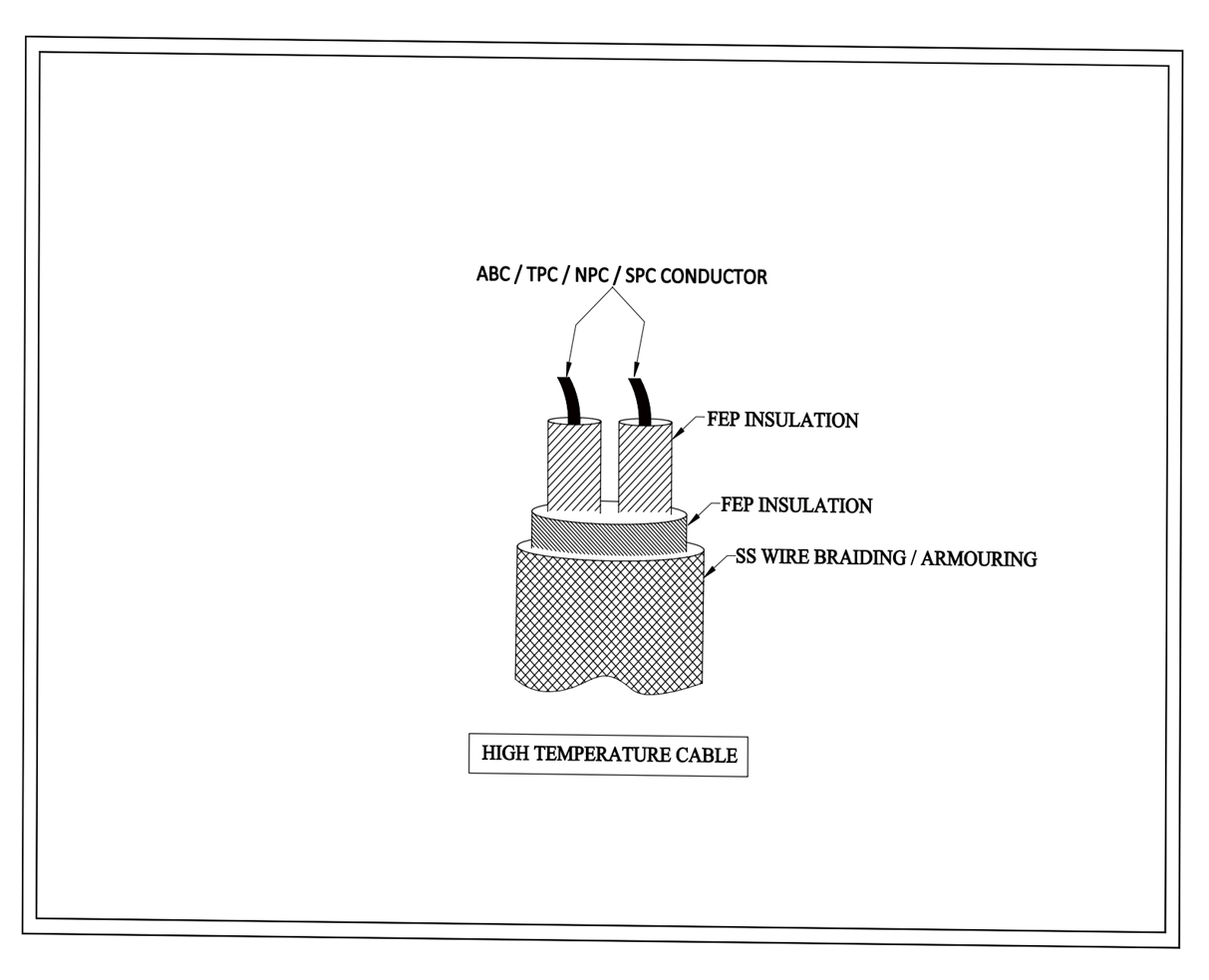

Technical ( GA ) Drawing
