FEP-KAP-SCREENING-FEP
Technical Details
Design Standard : As per JSS 51034, IS 8130
Conductor : Annealed Bare Copper / Nickel Plated Copper / Tinned Plated Copper / Silver Plated Copper
Conductor Size : Variant as per customer specifications
Conductor Type : Solid wire / Flexible
No of Core : Single Core / Multi Core
Core Insulation : Extruded FEP Insulated
Core Formation : Twisted
Isolator : Polymide Tape/ Kapton Tape
Screening : Copper Screening
Outer Sheath Insulation : Extruded FEP Insulated
Core Colour : As per Customer specification.
Outer Sheath Colour : As per Customer specification.
Cable Temp. Range : Up to 260 Deg C
Voltage Grade : Upto 1100 V
Special Features
- Max. Temp. upto 260ºC
- Suitable for High Voltage Use
- Low Dielectric Constant
- Excellent Fire Retardant Property
- Good Mechanical Strength
- Good Flexibility
- Good Moisture, Chemical Abrasion Resistance
- Excellent Resist to Electro Magnetic Inter Ference

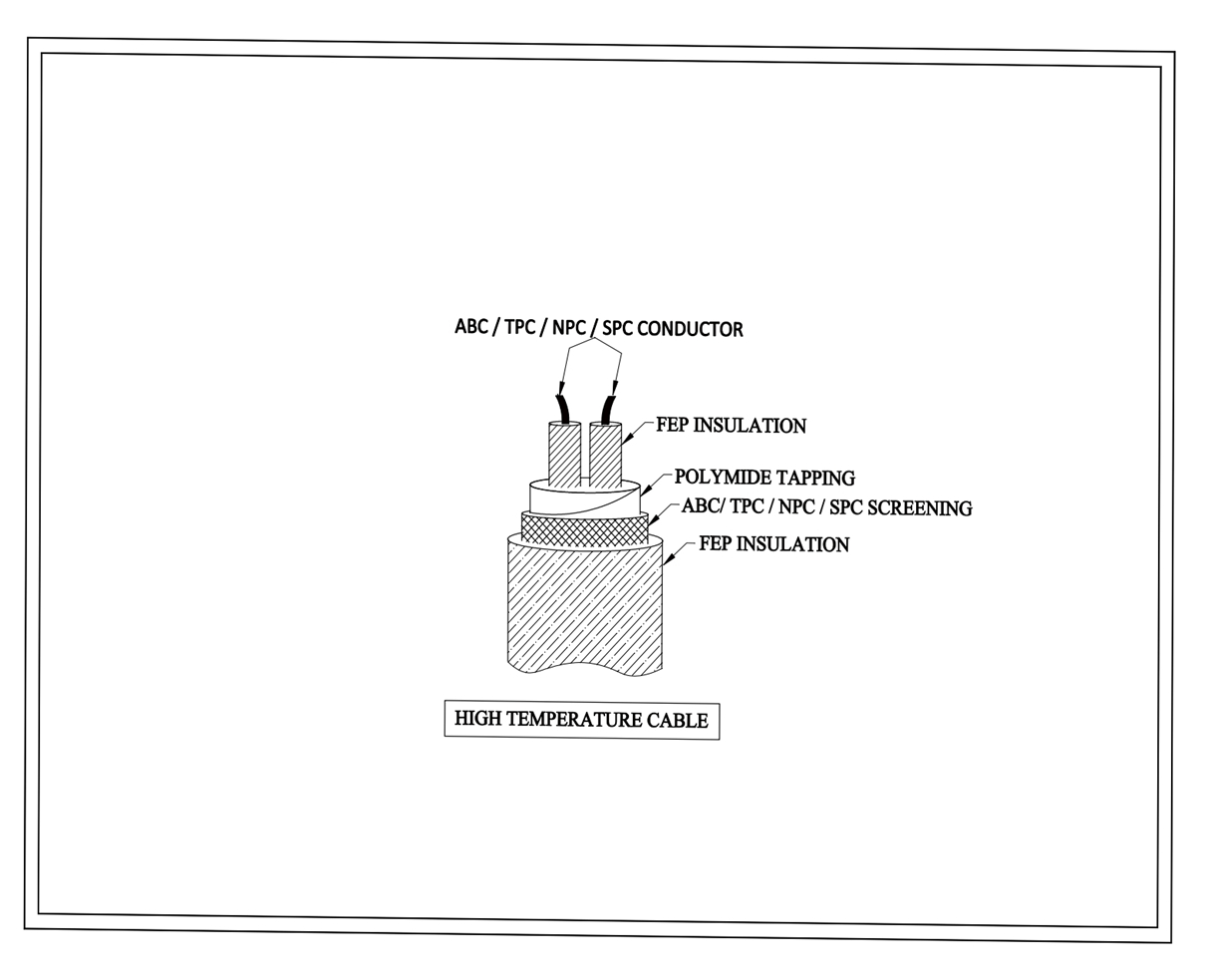

Technical ( GA ) Drawing
