PTFE-SILICON RUBBER

Technical Details

Design Standard : As per JSS 51034, IS 8130 ; IS 9968

Conductor : Annealed Bare Copper / Nickel Plated Copper / Silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Wrapped & Sintered PTFE ( Teflon ) Insulation

Core Formation : Twisted

Outer Sheath Insulation : Silicon Rubber Insulation

Core Colour : As per Customer specification.

Outer Sheath Colour : As per Customer specification.

Cable Temp. Range : Up to 200 Deg C

Voltage Grade : Upto 1100 V

Special Features

• Max. Temp. upto 200ºC
• Excellent Heat Resistant
• Outstanding Insulating Properties
• Good Thermal Stability
• Flame Retardant
• Excellent Mechanical Strength
• Passes JSS 51034 Flame Test

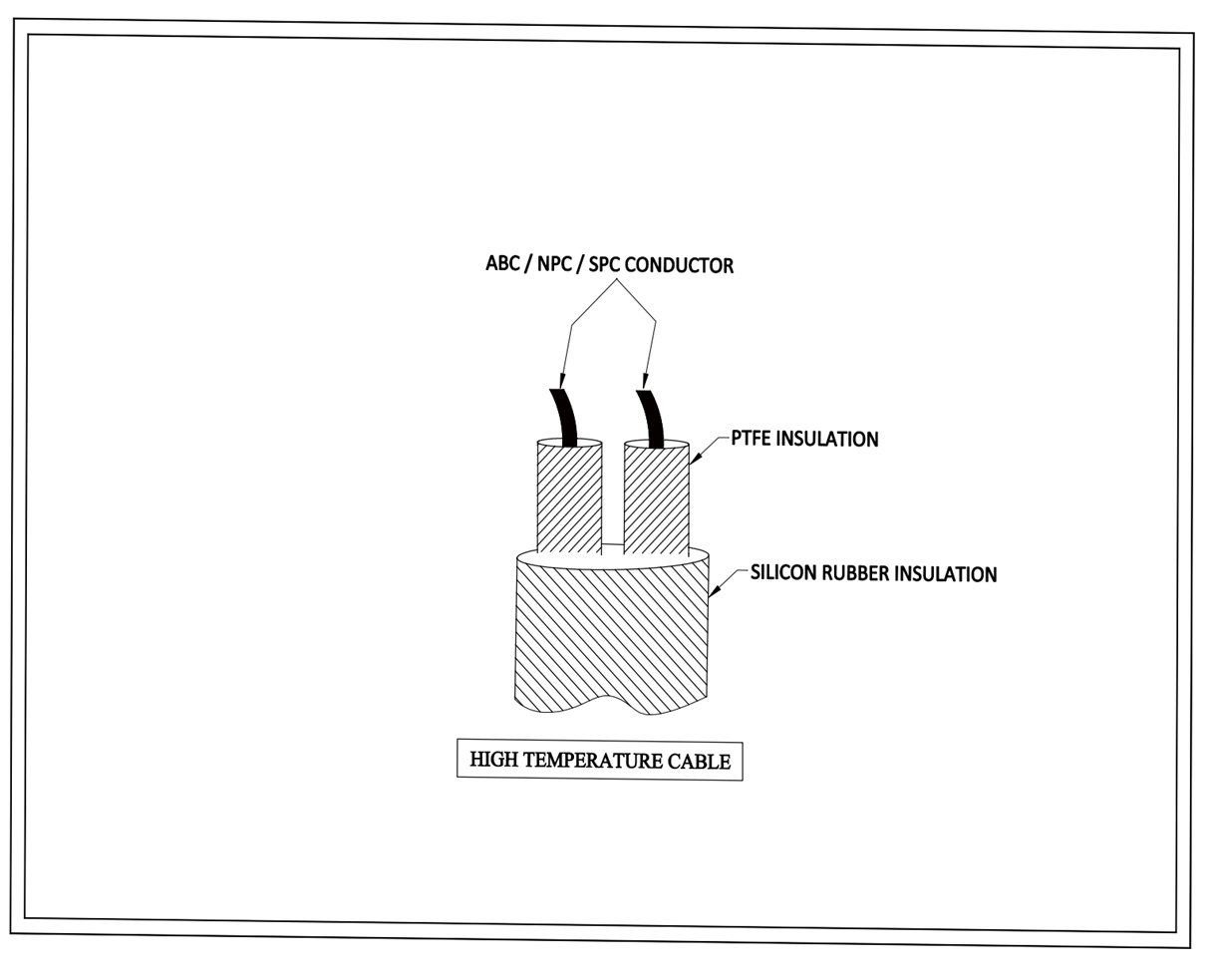

Technical ( GA ) Drawing
