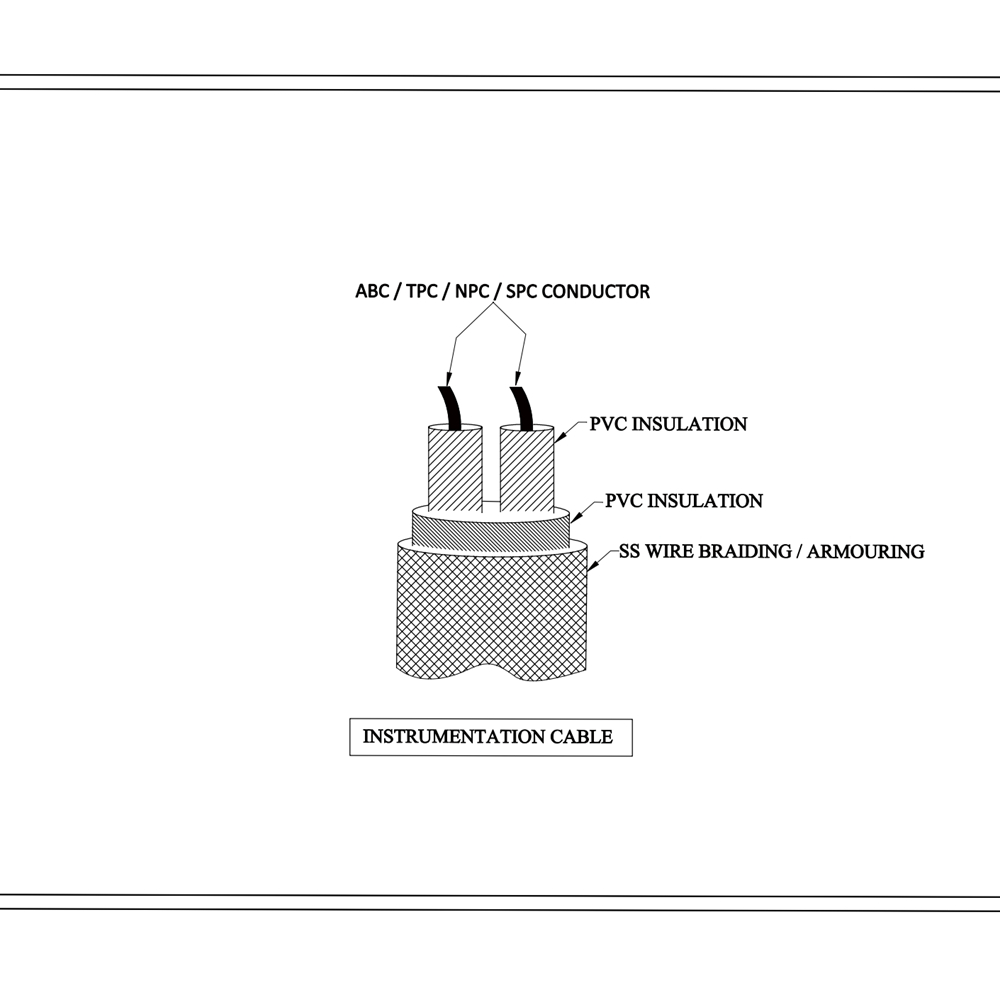

PVC-PVC-SS BRAIDING

Technical Details

Design Standard : As per IS 8130, IS 5831:84, IS 694, IS 1554

Conductor : Annealed Bare Copper / Nickel Plated Copper /

Tinned Plated Copper / Silver Plated Copper

Conductor Size : Variant as per customer specifications

Conductor Type : Solid wire / Flexible

No of Core : Single Core / Multi Core

Core Insulation : Extruded PVC / HR PVC / FR PVC / FRLS PVC / PE / XLPE / LSZH PVC etc.

Core Formation : Twisted / Flat

Outer Sheath Insulation : Extruded PVC / HR PVC / FR PVC / FRLS PVC / PE / XLPE /

LSZH PVC etc.

Braiding : SS Wire Braiding / Armouring

Core Colour : As per Customer specification.

Outer Sheath Colour : As per Customer specification.

Cable Temp. Range : Up to 105 Deg C

Voltage Grade : Upto 1100 V
